Kstar Uninterruptible Power Supply (UPS) 600VA/360W (0.6kVA)

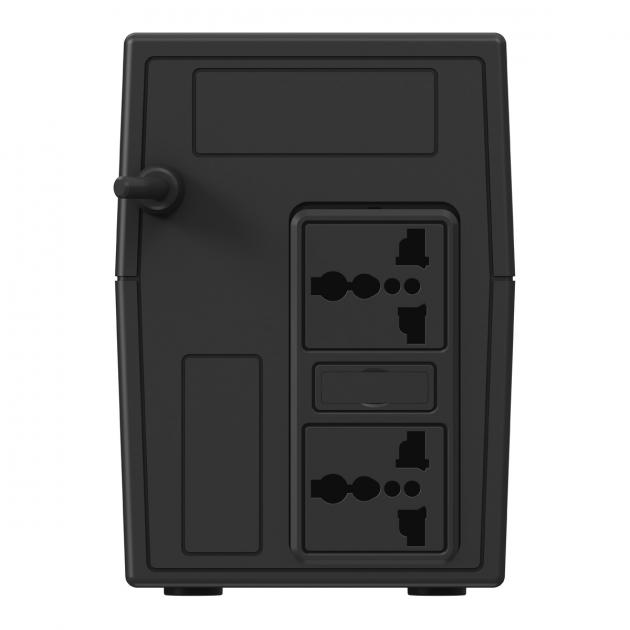

The key specification of KSTAR UPS UA60 – 600VA/360W are as follows: Type Line Interactive UPS Model UA60 Capacity (VA/Watts) 600VA/360W Safety / Protection Overload And Overcharge Protection Indicators AC Mode, Battery Mode, Load Level, Battery Leve Input/Output UPS Input/Output : 1P N E / 1P N E (230V 50Hz) Universal Power Outlet, Output Sockets : 02 Nos Other Features Part 1 Excellent Microprocessor Control Guarantees High Reliability. (Internal Self-Diagnostic Technology), Boost And Buck AVR For Voltage Stabilization. (Wide Input Range With Two Boost And One Buck Control) Other Features Part 2 Auto Restart While Ac Is Recovering. | Cold Start Function. | Off-Mode Charging. | Fast Intelligent Battery Recharge Function. | Generator Compatible. Standards Safety: IEC/EN62040-1;IEC/EN60950-1 | EMC: IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8 Dimensions 101×298×142 W x D x H (mm) Weight 4.3 kg Colors Black Other Information Battery Warranty : One Year Product Warrant : Two Years This UPS is specially designed for Personal Computer with multi-functions. lts light weight, compact design perfect fits to the limited working environment. The line of UPS is equipped with two boost and one buck AVR to stabilize wide input voltage range. lt is also built-in with DC start function. This function enables the UPS to be started up without AC power supply. It not only offers great comprehensive power protection against surges and spikes, but also provides pure voltage with AC voltage stabilizer. Input Nominal Input Voltage 220/230/240 Vac Operating Voltage Range 140~300 Vac Operating Frequency Range 50/60 Hz (1±10%) (Auto Sensing) Output Output Voltage Range (Batt. Mode) Simulated Sinewave At Nominal Voltage ±10% Frequency Range (Batt. Mode) 50 Hz Or 60 Hz ± 1 Hz Transfer Time Typical 2-6 ms, 10ms Max. Waveform (Batt. Mode) Simulated Sinewave Battery Voltage 12Vdc Battery Type / Number 12V/7Ah x 1 Typical Recharge Time 4-6 Hours ( To 90% Capacity) Alarm Battery Mode Sounding Every 10 Seconds Battery Low Sounding Every Second Overload Sounding Every 0.5 Second Battery Replacement Alarm Sounding Every 2 Seconds Fault Continuously Sounding Environment Operating Temperature 0 – 40°C Humidity Range 0-95 % (Non-Condensing) Noise Level <40db (1 Meter From Surface) Features AVR Boost and Buck Automatically corrects either under-voltage or over-voltage condition without unnecessary battery drain and extend the life of the battery. Cold Start Function Aids users to turn on the UPS without connecting the Utility. Built-in Self-diagnostic Function May execute automatically upon power-on or software-control. Compatible with Generator Set Micropower series supports wide range input voltage to fit with various generator sets. Fastest Charging Capacity With built-in powerful charger, the UPS can be fully charged back to 90% in 4-6 hours. Auto Charging at Off Mode The battery may be charged continuously even though it is at OFF mode. Auto-restart Function The UPS will be automatically re-started when Utility recovers. Shop for similar products now! For exclusive offers subscribe us on facebook! SKU: UPS-KSTAR-650V Categories: Other Accessories, Uninterruptible Power Supply (UPS)
